TPU Overmolding for Electronics and Protective Parts: Matching Soft Touch, Impact Protection, and Substrate Adhesion
TPU overmolding is an interface-design problem, not a hardness-only decision. Source/creator: GOAFLEX — GOAFLEX-owned editorial diagram; approved for GOAFLEX commercial use.
A soft edge, grippy surface or protective bumper can look like a simple second material. In production, however, the rigid substrate, elastomer grade, interface geometry and molding history behave as one system. A part can feel excellent on day one and still peel, warp, become tacky or lose fit after drops, sweat, cleaners, heat or UV exposure.
Quick answer
TPU is a strong overmolding candidate when a protective part needs toughness, abrasion resistance, elastic recovery and thermoplastic processing. It is not automatically compatible with every ABS, PC, PC/ABS, PA, PBT, PP, coated insert or metal surface. Start with the exact substrate grade and service conditions; select a TPU designed for the required bond and performance balance; protect the interface with sound geometry; then validate the actual molded assembly with adhesion, impact, wear, chemical and aging tests.
A supplier compatibility chart is useful for screening, but it is not a production guarantee. Fillers, flame-retardant packages, lubricants, pigments, mold-release agents, regrind, drying, substrate temperature and storage can all change the interface.
Where TPU overmolding fits
Electronics and industrial products use soft overmolded zones for several different functions. Keeping those functions separate helps prevent a “one soft grade does everything” specification.
| Part function | Typical location | What must be validated |
|---|---|---|
| Grip and tactile control | Handheld device, scanner, tool handle, controller | Wet/dry friction, skin oils, cleaner exposure, gloss/tack change, edge peel |
| Impact and corner protection | Phone case, instrument housing, portable electronics | Drop orientation, temperature, geometry, permanent set, cracking and device retention |
| Sealing or splash management | Button surround, connector cover, housing lip | Compression, dimensional recovery, leakage path, assembly tolerance and aging |
| Vibration or noise control | Mount, bumper, internal isolator | Dynamic stiffness, compression set, heat buildup and attachment integrity |
| Strain relief and cable protection | Cable entry, flexible boot, connector overmold | Repeated bend, tear at transitions, cable compatibility and pull-out behavior |
| Cosmetic contrast or protective skin | Decorative panel, bezel, edge rail | Flow marks, color consistency, scratch/abrasion, UV and cleaning durability |
TPU may fit more than one of these roles, but the grade and geometry that maximize grip may not be the best choice for a thin seal or a repeatedly flexed strain relief. Define the primary function and failure mode before setting hardness or color.
The three-part overmolding decision
A protective phone case illustrates application-specific edge, opening, grip and tactile requirements. Contextual image only; the photographed material is not verified as TPU. Source/creator: N1CE on Unsplash — free for commercial use under the Unsplash License.
Start with the exact substrate
“ABS,” “PC” or “nylon” is not a complete substrate specification. The commercial grade may contain glass fiber, flame retardants, internal lubricants, impact modifiers, colorants or recycled content. Those ingredients can alter surface energy, thermal response and bond formation. PC/ABS blends can also vary significantly in composition.
Polar TPU formulations are often screened for use with polar engineering plastics such as selected ABS, PC, PC/ABS, PBT or polyamide grades. Polyolefins such as PP and PE are generally more difficult without a purpose-designed bonding grade, surface treatment, primer or mechanical lock. Metals normally rely mainly on mechanical anchoring and, where approved, a primer or surface treatment. These are starting directions only; the exact resin pair must be tested.
For pick-and-place overmolding, the first-shot insert has cooled and may have been stored or handled. Dust, fingerprints, moisture, release agent or migration from additives can reduce wetting and adhesion. Two-shot molding can present a warmer, cleaner interface, but it still requires compatible materials and a controlled process.
Choose the TPU by function and interface
Hardness is only one input. Modulus and overmold thickness influence perceived softness. Surface texture and coefficient of friction affect grip. Tensile and tear properties influence survival around thin lips, gates and undercuts. Abrasion, hydrolysis, oil resistance, low-temperature flexibility, UV package and color stability depend on chemistry and formulation.
The selected grade must also fill the intended geometry without excessive shear or residence time. TPU is moisture-sensitive, and processing guidance from major TPU suppliers emphasizes controlled drying, smooth flow paths, appropriate gate and runner sizing, stable melt and mold temperatures, adequate venting, and avoiding stagnant regions where material can degrade. Use the grade-specific processing sheet rather than copying settings from another TPU.
Design the interface to resist peel
Chemical adhesion is valuable, but geometry should not make it carry every load. Peeling often begins at an exposed elastomer edge. Wrap-around features, protected edges, through-holes, grooves, undercuts, posts and dovetail-like anchors can add mechanical retention when they are compatible with molding and demolding. Avoid abrupt thickness changes and unsupported substrate areas that can deflect under injection pressure.
Gate location should promote controlled flow across the bond area while allowing trapped air to escape. Weld lines, flow hesitation and last-to-fill zones near a critical interface deserve special attention. The tool should support the rigid insert well enough to limit warpage or flash.
TPU vs TPE, silicone, and rubber

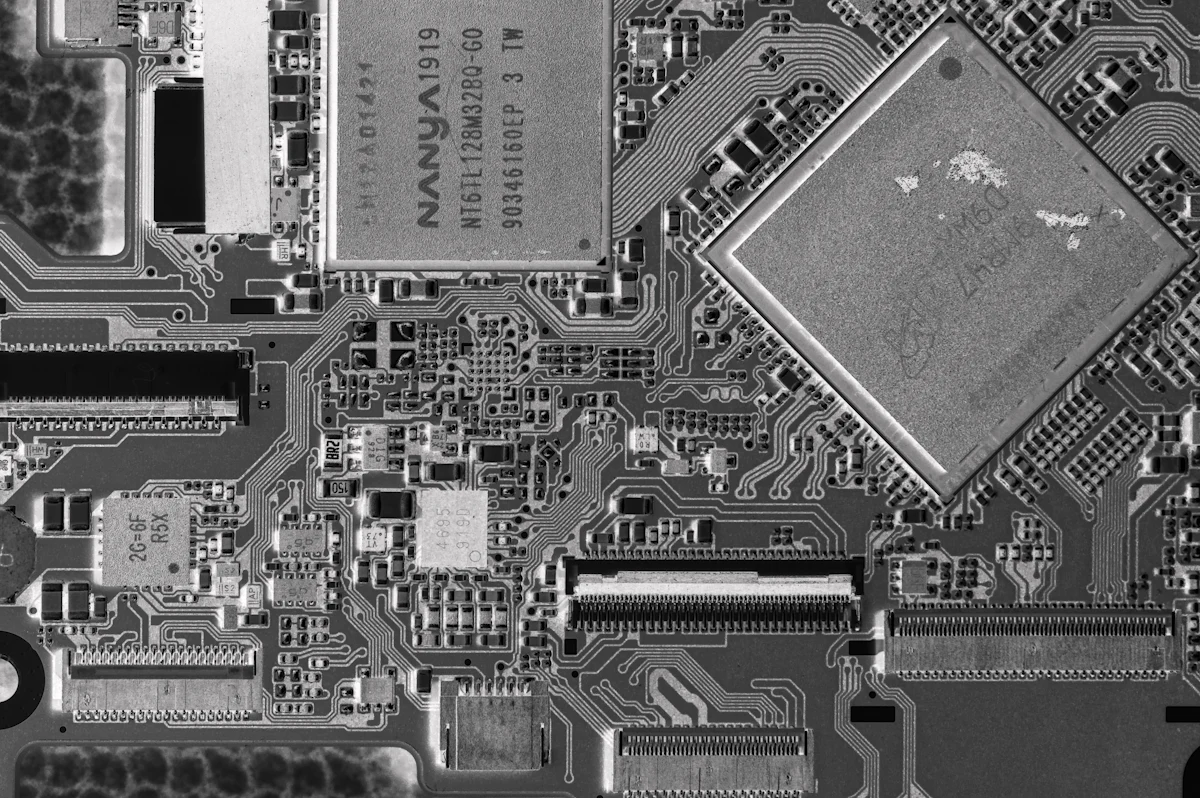

Electronic components make enclosure fit, impact protection, sealing and service exposure important finished-assembly requirements. Contextual image only; no TPU chemistry is implied. Source/creator: Albert Stoynov on Unsplash — free for commercial use under the Unsplash License.
| Material family | Where it may fit | What to validate or watch |
|---|---|---|
| TPU | Abrasion-prone grips, bumpers, protective cases, strain reliefs and tough flexible zones | Exact substrate adhesion, moisture control, shear/heat history, hydrolysis, oil/sweat, UV/color, hardness-modulus balance |
| Other thermoplastic elastomers / TPV | Very soft touch, broad overmold portfolios, PP-oriented systems, efficient thermoplastic processing | Grade-specific substrate bond, scratch/abrasion, compression set, tack, chemical exposure and temperature |
| Silicone / LSR | Soft tactile parts, heat-sensitive applications, selected seals and premium-feel surfaces | Separate molding process, primer/bonding route, tear, contamination, cycle economics and regulatory evidence |
| Thermoset rubber | Established compounds for demanding sealing, heat or chemical environments | Cure process, bonding/assembly method, tooling, flash control, odor/extractables and end-of-life route |
The comparison should be made on a molded construction at the target thickness and texture. A very soft material in a thin, fully supported layer may feel firm; a somewhat harder material formed into ribs or an unsupported cushion can feel softer. Grip is also affected by surface finish and contamination, not just Shore hardness.
Common failure modes and what they mean
An injection-molding mold insert for ABS resin illustrates the tooling side of substrate and overmold process control. Source/creator: Blue tooth7 via Wikimedia Commons — CC BY-SA 3.0.
Peel or delamination
Check the exact substrate and TPU lot, insert age, storage, drying, contamination, release agents, substrate and melt temperature, injection speed, hold conditions, contact area and edge geometry. Determine whether failure is adhesive at the interface, cohesive within the TPU, or fracture within the substrate. Record where peeling starts and the direction of load.
Short shot, hesitation, flow marks or burn marks
Review residual moisture, melt temperature, residence time, gate restriction, runner balance, injection profile and venting. Raising temperature or speed without diagnosis can trade a short shot for degradation, gloss variation or weak properties. A short-shot study and cavity-pressure data can help distinguish flow-path limitations from material behavior.
Flash, substrate movement or warpage
Inspect insert support, shutoff surfaces, clamp force, injection and packing pressure, temperature balance, first-shot dimensions and post-shrinkage. The second shot can heat and load the rigid substrate enough to distort it, especially near thin walls or unsupported edges.
Tack, gloss loss, cracking or color change after use
Recreate actual exposure: skin oil, sunscreen, sweat simulant, alcohol or detergent wipes, industrial cleaner, heat, humidity, UV and repeated handling. Measure mass or dimensional change, hardness, surface condition, color, grip and bond retention. “Oil resistant” and “UV resistant” should never be treated as universal without concentration, temperature, time and acceptance criteria.
A practical validation plan
- Define the part function, substrate trade name and grade, color/additive package, overmold geometry, annual volume and molding route.
- Screen candidate TPU grades using supplier bond guidance and end-use property needs. Include a mechanical-retention concept when practical.
- Mold standardized plaques or representative coupons with the real substrate, surface condition and process sequence. Record drying, temperatures, pressures, speed, residence time and cooling.
- Measure adhesion using a defined peel, pull or shear geometry that represents the likely load. Report specimen width, thickness, test speed, conditioning and failure mode.
- Mold representative parts and check fill, flash, warpage, dimensions, texture, grip and assembly fit. Use drop orientations and impact energy relevant to the device.
- Age assemblies in the relevant combination of heat, humidity, sweat/oils, cleaners and UV. Retest adhesion, appearance, dimensions, impact and tactile response after aging.
- Run a pilot across cavities, machines, operators and normal material lots. Set incoming, process and finished-part controls before release.
For a phone or handheld enclosure, a useful drop plan includes multiple orientations, temperature conditioning and inspection of both the elastomer and protected device. For a grip, add repeated handling, cleaner cycles and peel loading at exposed edges. For a seal, add compression, leakage and assembly-tolerance testing. The method should reproduce the real failure risk rather than provide a convenient but unrelated number.
Where TPU may not be the right starting point
- The substrate is a low-surface-energy polyolefin and neither a validated bonding grade, treatment, primer nor mechanical lock is acceptable.
- The required softness, thermal exposure, compression behavior or regulatory documentation is better served by a purpose-designed TPE, silicone or rubber system.
- The part geometry creates unavoidable exposed peel edges, trapped air or unsupported insert movement that cannot be corrected in the tool.
- Aggressive chemicals, continuous high temperature or outdoor color retention exceed the evidence available for the candidate TPU.
- The economics or production volume do not justify two-shot tooling, while a separate molded sleeve, gasket or assembled bumper can be validated more simply.
What to send GOAFLEX for material review
- Rigid substrate manufacturer, trade name, grade, color, fillers, flame-retardant package, regrind content and any coatings or release agents.
- CAD or drawing showing overmold thickness, interface area, exposed edges, ribs, holes, undercuts, gates, vents and shutoffs.
- Two-shot, core-back or pick-and-place process; machine size; cavity count; expected cycle; and insert storage/handling conditions.
- Target hardness, tactile feel, color, texture, friction, abrasion, tear, seal, impact or damping requirements.
- Drop conditions, chemicals/cleaners, skin-contact exposures, temperature/humidity, UV and expected service life.
- Existing material, process settings, defect photographs, failed parts, adhesion method and acceptance criteria.
- Any compliance, restricted-substance, electrical, flammability, skin-contact or traceability requirements for the exact product and market.
GOAFLEX can use this information to discuss an initial TPU candidate and a trial plan. Grade availability, substrate bond, regulatory status and application performance must be confirmed for the specific project.
Ready to review an overmolded grip, bumper, case or protective part? Send the substrate grade, part drawing, service exposures and current failure mode to hello@goaflex.com. For related guidance, see GOAFLEX’s TPU injection-molding grade selection guide: https://www.goaflex.com/blog/how-to-choose-right-tpu-grade-injection-molding
